A buyer once lumped solar and wind into a single RFQ line: “renewable energy grade electrical steel,” one spec for both. It doesn’t work that way. We had to split the quote into two before we could even price it. Wind turbine generators are rotating machinery, so they land in the CRNGO camp with every other motor and generator. Solar inverter transformers are transformers — fixed-direction flux, step-up or step-down duty, no rotor at all — so they belong in CRGO territory, the same family used in grid distribution transformers. Same “renewable energy” label. Different physics entirely. For where this fits among every other application, see our electrical steel applications guide.
Core Key Points
- Solar inverter transformers use CRGO electrical steel because they operate as fixed-direction flux transformers, converting inverter output for grid connection — identical grade logic to any distribution transformer.
- This is a completely different grade family from wind turbine generators, which run CRNGO as rotating machinery, despite both getting casually grouped under “renewable energy.”
- Solar inverter transformer cores commonly use EI core, E-core, or split CD core construction — split CD cores as small as 40 kVA rated capacity show up regularly in single-phase inverter transformer listings.
- Amorphous metal cores can cut no-load loss by roughly 70-80% versus standard silicon steel, at a material cost premium that’s typically 2-4x standard CRGO — justified mainly at utility scale, not for a handful of units.
- Specifying CRNGO for what is structurally a transformer forfeits CRGO’s directional efficiency advantage entirely — not a partial loss, a complete one, since the field never runs anywhere except the direction CRGO was built for.
- As a China-based CRGO supplier and manufacturer, we roll, slit and test in-house and ship a mill test certificate confirming core loss (P1.7/50) and induction (B8) with every coil — the two numbers that actually determine an inverter transformer core’s efficiency.
Why Solar Inverter Transformers Are Transformers, Not Motors

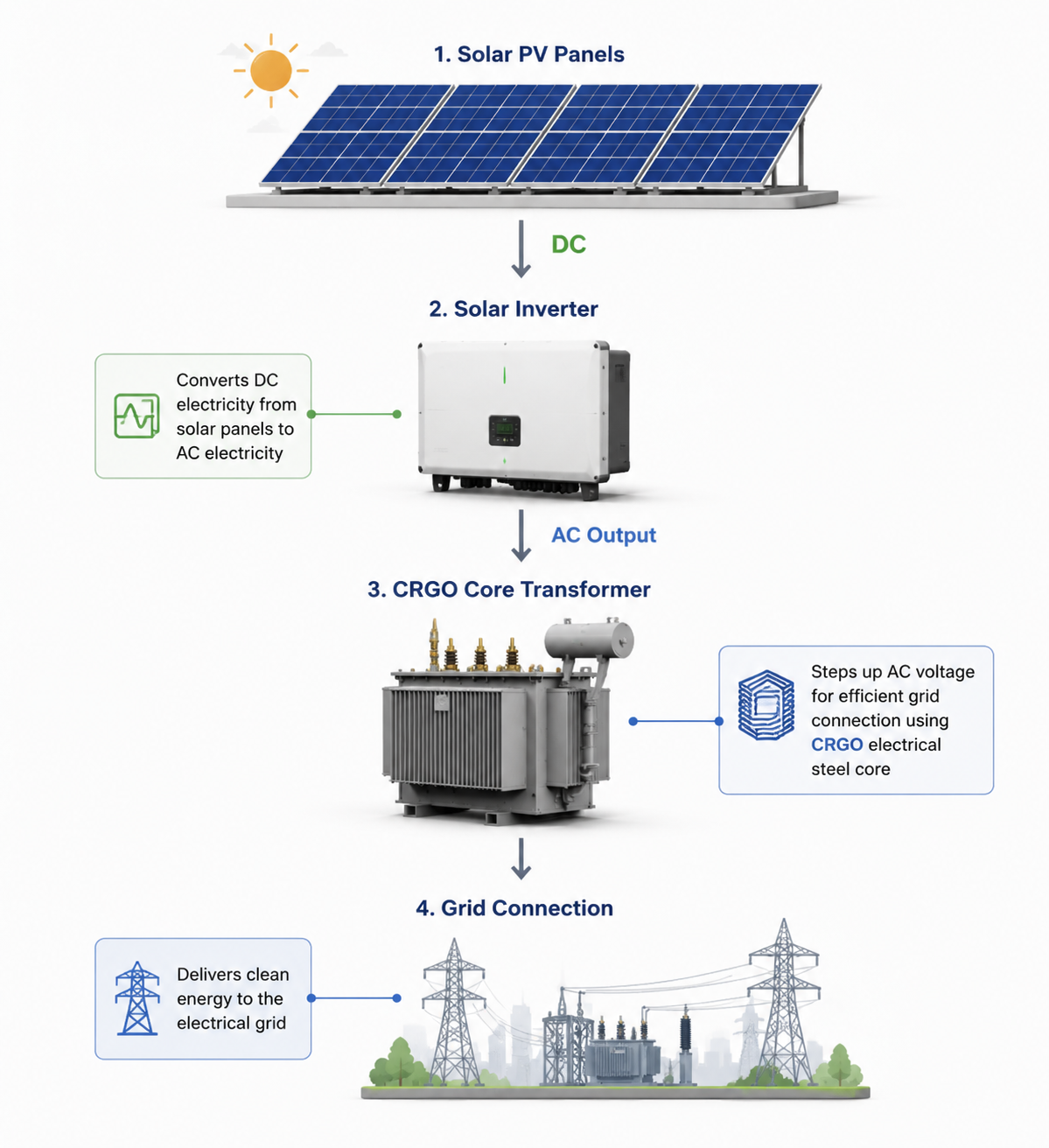

Obvious once you say it. A solar inverter transformer takes the AC output from a solar inverter and steps it up, or down, for grid connection. No rotor. No rotating field. The flux path is fixed by the core geometry — exactly like a conventional distribution transformer.
That single fact settles the grade question. Fixed-direction flux means CRGO’s directional efficiency advantage is fully usable, same as any transformer application. There’s no engineering reason to reach for CRNGO here. Doing so means paying for isotropic performance the application never uses, while giving up the loss reduction CRGO would have delivered for free — the same rotating-vs-fixed-field logic we cover in full in our CRGO vs CRNGO breakdown.
Grade Selection for Solar Inverter Duty
Within CRGO, solar inverter transformers usually don’t need the aggressive Hi-B grades reserved for utility-scale power transformers with steep no-load loss penalties. Usually. Large solar farm installations are the exception, where losses accumulate across dozens or hundreds of individual transformer units simultaneously.
The practical grade decision comes down to two tiers:
- Standard CRGO (0.27-0.30mm) for smaller commercial or residential-scale inverter transformers, typically rated 20-100 kVA, where cost efficiency outweighs the last percentage point of loss reduction
- Hi-B CRGO (0.23-0.27mm) for utility-scale solar farm installations, where no-load loss multiplied across a large transformer fleet becomes commercially significant over a 20-25 year installation life
Numbers make the tier decision concrete. Within GB-graded CRGO, thickness, core loss and induction move together:
| Tier | Typical grades | Thickness | Core loss P1.7/50 | Induction B8 | Typical inverter size |
|---|---|---|---|---|---|
| Standard CRGO | 27Q120 / 30Q130 | 0.27 / 0.30 mm | ≤ 1.20–1.35 W/kg | ≥ 1.80–1.83 T | 20–100 kVA commercial & residential |
| Hi-B CRGO | 27QG090 / 30QG110 | 0.27 / 0.30 mm | ≤ 1.00–1.15 W/kg | ≥ 1.88–1.89 T | Utility-scale string & central inverters |
| Domain-refined Hi-B | 23QG080 | 0.23 mm | ≤ 0.85 W/kg | ≥ 1.90 T | Largest farms, steepest no-load-loss penalty |
P1.7/50 is core loss at 1.7 T, 50 Hz, in watts per kilogram — the number that determines how much energy the core itself burns as heat, independent of load. B8 is induction at 800 A/m, in tesla — how much flux the core carries before saturating. Lower loss and higher induction both cost more per coil, which is exactly why the tier split above tracks installation scale: the loss reduction only pays for itself once you’re multiplying it across enough transformer units.
EI, E-Core, and Split CD: The Common Construction Formats
A few construction formats show up repeatedly in solar inverter transformer designs:
| Format | Characteristics |
|---|---|
| EI Core | Traditional laminated construction, easier to manufacture and repair — common in larger UPS-adjacent and industrial inverter applications |
| E-Core | Minimizes conversion-process energy loss, common where DC-to-AC efficiency is the top design priority |
| Split CD Core | Common in compact single-phase designs; we’ve seen listings as small as 40 kVA rated capacity using split CD construction with CRGO cores |
Format is mostly a mechanical packaging decision, tied to the inverter’s assembly process. Grade (CRGO, and which sub-grade) is driven by electrical requirements. The two decisions run mostly independent of each other — picking a core format doesn’t lock you into a specific steel grade. If you’re translating any of this into a purchase spec, our transformer core buyer’s guide covers what needs to be on the RFQ beyond just the grade name.
Amorphous Core: A Competing Option Worth Knowing About
Worth flagging honestly: amorphous metal cores are a real alternative in some solar inverter transformer designs, and the numbers are genuinely impressive. Amorphous material’s non-crystalline atomic structure can cut no-load loss by roughly 70-80% compared to standard silicon steel. That’s not a marginal gain.
The catch is cost — typically 2-4x standard CRGO per unit of core material — plus more brittle handling during manufacturing than conventional silicon steel tolerates. For most solar inverter transformer applications, standard or Hi-B CRGO still wins on cost-to-performance. Amorphous earns its premium specifically at utility scale, where no-load loss accumulated across hundreds of units over 20+ years of operation actually recovers that 2-4x material cost.
Sourcing CRGO for Solar Inverter Transformer Cores
We’re a China-based CRGO supplier and manufacturer — Wuxi Zhongxin Special Steel rolls, slits and tests the coil in-house rather than trading someone else’s mill output, which is why the grade printed on your quote matches the grade on the mill test certificate that ships with the coil. For solar inverter transformer cores specifically, that usually means precision-slit strip or stamped EI, E-core or split-CD laminations to your drawing, in standard or Hi-B CRGO, with a mill test certificate confirming P1.7/50 and B8 on every coil.
Send your core format, kVA rating and target loss class, or upload a drawing, and we’ll confirm the matching grade — see the full grain-oriented silicon steel range for coil dimensions and tolerances, or request a quote directly.
Example: Sizing Core Material for a Utility-Scale Solar Farm
Here’s roughly how the tier decision plays out in practice. A utility-scale solar farm built around 2,000–3,300 kVA central or string inverter transformers might run several dozen units across the site. On a single small inverter transformer, the difference between standard and Hi-B CRGO core loss is a few watts per kilogram — not worth chasing. Multiplied across dozens of units running continuously for a 20-25 year installation life, that same per-unit difference in no-load loss becomes a real recurring cost, which is what usually tips the decision toward Hi-B CRGO (or, at the largest sites, domain-refined Hi-B or amorphous) despite the higher material cost per coil.
The practical sourcing conversation for a project like this usually covers three things: core format (EI, E-core or split CD, set by the transformer manufacturer’s assembly line), grade tier (standard vs. Hi-B, set by farm size and target loss budget), and coil logistics (slit width, coil weight and inner diameter matched to the core fabricator’s line). We quote against that spec directly rather than a single blended “renewable energy steel” line item — send us the transformer manufacturer’s core drawing or spec sheet and we’ll return a grade recommendation and quote within 24 hours.
On the logistics side, CRGO for this kind of order ships as master or mill-edge coil, or pre-slit to the core fabricator’s width, wound to a 508 mm inner diameter as standard (610 mm on request), at roughly 5 t per coil. That’s usually enough for a single core-manufacturing run without splitting a coil mid-batch, which matters when a farm’s transformer units are all speced to the same grade and the fabricator wants one continuous lamination run rather than a seam between two coils. Free samples are available up front to confirm core loss and stampability before you commit to a full production order, and quotes come back within 24 hours of receiving a spec.
Certification and Testing on Inverter Transformer Core Material
Solar projects tend to run through EPC procurement and bankability review before steel ever gets ordered, so paperwork matters as much as the grade itself. Every coil ships with a mill test certificate confirming the actual core loss and induction measured on that production run — not just the guaranteed values printed on the datasheet — plus production under ISO 9001 and IATF 16949, with material available to GB, EN, JIS or AISI grade systems and RoHS / REACH compliance for projects with EU-linked supply chain requirements.
If your transformer manufacturer or EPC works from a European or Japanese datasheet instead of the GB grades used above, that’s a cross-reference exercise, not a blocker — send the target spec and we’ll confirm the closest GB equivalent before quoting, the same way we do for any other grain-oriented silicon steel order.
FAQ
Do solar inverter transformers use the same steel as wind turbine generators?
No. Solar inverter transformers are fixed-flux transformers using CRGO, the same grade family as conventional distribution transformers. Wind turbine generators are rotating machinery using CRNGO. Both get grouped as “renewable energy,” but the grade logic is unrelated.
Why would a solar farm justify Hi-B CRGO over standard CRGO?
At utility scale, a solar farm may run dozens to hundreds of inverter transformers at once, over a 20-25 year installation life. No-load loss that’s negligible in one small transformer becomes commercially significant multiplied across that many units for that long.
Is amorphous core steel better than CRGO for solar inverter transformers?
Amorphous cores can cut no-load loss by roughly 70-80% versus standard silicon steel, but at 2-4x the material cost and more brittle handling. Standard or Hi-B CRGO remains more cost-effective for most installations; amorphous pays off mainly at utility scale.
Does the core format affect which steel grade I should use?
Not directly. Core format is a mechanical and assembly decision tied to the inverter’s packaging. Grade selection is driven by electrical requirements. The two are made mostly independently of each other.
What core loss and induction values should I specify for an inverter transformer core?
For standard CRGO (27Q120/30Q130), expect core loss P1.7/50 of roughly 1.20–1.35 W/kg and induction B8 of 1.80–1.83 T. Hi-B CRGO (27QG090/30QG110) tightens that to about 1.00–1.15 W/kg and 1.88–1.89 T. Domain-refined Hi-B (23QG080) goes further still, to 0.85 W/kg and 1.90 T, for the largest installations where no-load loss matters most.
Are you a manufacturer or a trading company for solar inverter transformer steel?
We’re the manufacturer — a China-based CRGO supplier that rolls, slits and tests the coil ourselves, with a mill test certificate on every order. Send your core format and target loss class and we’ll confirm the grade before quoting.
How long does it take to get samples or a quote for a solar farm order?
Quotes come back within 24 hours of receiving a spec — grade, thickness, width and core format, or a drawing. Free samples for core loss and stampability testing are usually ready within about a week. For the production run itself, common CRGO grades and thicknesses often ship from stock in days; non-standard widths or Hi-B grades not already in inventory typically take a few weeks, which is worth factoring into a solar project’s procurement timeline alongside the EPC’s own approval cycle.
If your RFQ still lists “renewable energy grade electrical steel” as one blended line item covering solar and wind, split it before we quote. The grade requirements genuinely diverge, and a single blended spec almost always means one of the two applications ends up with the wrong material.
