CRNGO Steel Coil — 0.35 / 0.50 / 0.65 mm Cold-Rolled Non-Oriented Electrical Steel
Non-oriented electrical steel coil for motor, generator and compressor laminations. Master coil, mill-edge coil and slit coil in grades 35W300 to 65W800 (M300-35A to M800-65A), slit in-house to your strip width, with a mill test certificate on every coil.
Specifications
CRNGO steel coil specifications
Everything you need to check a coil against your line and drawing, in one table.
| Product | Cold-rolled non-oriented electrical steel (CRNGO), fully processed |
|---|---|
| Thickness | 0.35 / 0.50 / 0.65 mm |
| Grades (GB) | 35W300 · 50W470 · 50W600 · 50W800 · 65W800 — other GB grades on request |
| Equivalents | M300-35A to M800-65A (EN / IEC) · 35A300 to 65A800 (JIS) |
| Core loss P1.5/50 | ≤ 3.00 to ≤ 8.00 W/kg by grade |
| Induction B50 | ≥ 1.60 to ≥ 1.70 T by grade |
| Coil width | Up to approx. 1,250 mm as rolled · slit widths from 8 mm |
| Coil weight | Approx. 3–8 t master coil · slit coils to your decoiler limit |
| Inner diameter | 508 mm standard · 610 mm on request |
| Outer diameter | Follows coil weight — tell us your decoiler maximum |
| Edge | Mill edge (as rolled) or slit edge |
| Insulation coating | C5 inorganic (standard) · C6 inorganic-organic · C3 organic on request |
| Thickness tolerance | ± 0.02 mm |
| Width tolerance | ± 1.0 mm as rolled · ± 0.1–0.3 mm on slit coil · camber ≤ 5 mm / 2,000 mm |
| Stacking factor | ≥ 0.95 (0.35 mm) · ≥ 0.97 (0.50 / 0.65 mm) |
| Standards | GB/T 2521.1 · IEC 60404-8-4 · EN 10106 · JIS C 2552 |
| Supply forms | Master coil · mill-edge coil · slit coil · cut-to-length sheet |
| Documents | Mill test certificate with measured core loss and induction for each coil |
Have a drawing or spec sheet? Send it and we’ll confirm grade, width and coil size in the quote →
Coil forms
Master, mill-edge or slit coil
Same material, three ways to receive it — choose by how your stamping line is set up.

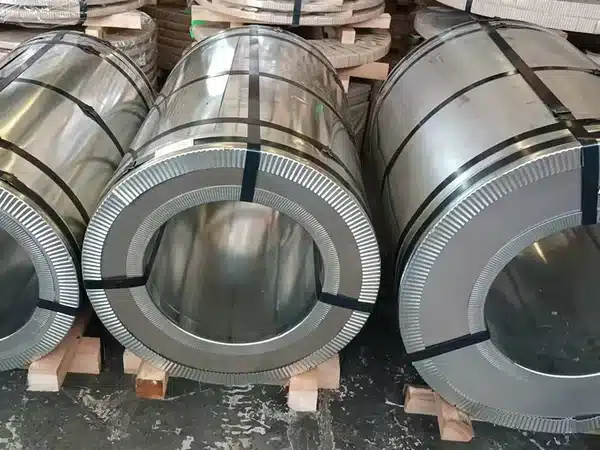

Master coil
Master coil
The full-width mother coil as rolled — for buyers who run their own slitting line.
- WidthUp to approx. 1,250 mm
- Coil weightApprox. 3–8 t
- Inner diameter508 / 610 mm

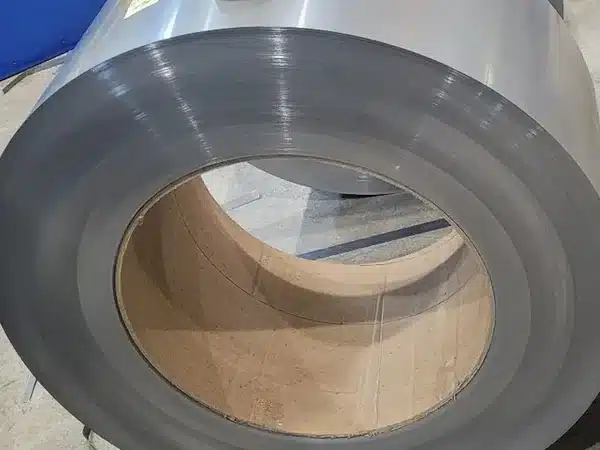

Mill-edge coil
Mill-edge coil
As-rolled width with the natural edge retained — no slitting cost when your line takes the mill width.
- WidthAs rolled
- Width tolerance± 1.0 mm
- EdgeNatural mill edge

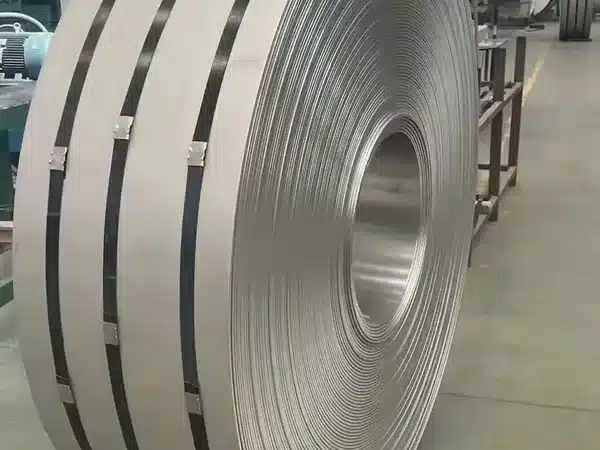

Slit coil
Slit coil
Slit in-house to your strip width and coil OD, ready to feed a progressive die or blanking press.
- WidthFrom 8 mm, to your drawing
- Width tolerance± 0.1–0.3 mm
- Coil weightTo your decoiler limit
By thickness & grade
CRNGO coil grades by thickness
Pick thickness first by your stamping and frequency needs, then grade by how much core loss you can trade for cost.
| Thickness | GB grade | EN / IEC equiv. | JIS equiv. | Core loss P1.5/50 max | Induction B50 min | Best for |
|---|---|---|---|---|---|---|
| 0.35 mm | 35W300 | M300-35A | 35A300 | 3.00 W/kg | 1.60 T | Compressor, servo & higher-frequency motors |
| 0.50 mm | 50W470 | M470-50A | 50A470 | 4.70 W/kg | 1.64 T | Efficiency-rated industrial motors |
| 0.50 mm | 50W600 | M600-50A | 50A600 | 6.00 W/kg | 1.66 T | General-purpose motors & generators |
| 0.50 mm | 50W800 | M800-50A | 50A800 | 8.00 W/kg | 1.70 T | Appliance, fan & pump motors |
| 0.65 mm | 65W800 | M800-65A | 65A800 | 8.00 W/kg | 1.70 T | Large, low-speed, cost-driven motors |
Guaranteed limits per IEC 60404-8-4 (Epstein test); measured values for each coil are reported on its mill test certificate. AISI M-grades carry no fixed thickness or loss limit, so they don’t map one-to-one — if you work to an ASTM A677 / AISI spec, send it and we’ll propose the closest GB grade with data. Need lower loss at 0.35 mm? See M270-35A. Full grade detail: Standard CRNGO.
Don’t see your grade? Send your spec sheet and we’ll confirm a match →
Coil processing
Slitting & processing for CRNGO coil
01
Precision slitting
Master coil slit in-house to your strip width (from 8 mm, ± 0.1–0.3 mm), edge-burr requirement and coil OD — ready to feed progressive dies directly.
02
Cut-to-length
Sheets cut from coil where your process needs flat blanks rather than strip.
03
Lamination-ready
Grade, thickness and coating matched to your stamping and stress-relief annealing process — tell us if laminations are annealed after stamping.
Full process and tolerances: slitting service guide. Discuss your processing requirements — send target thickness, slit width, coil weight and application →
By grade & standard
GB, EN & JIS equivalents
Equivalents are matched by thickness and maximum loss class; limits can differ slightly between standards, so confirm against your spec before ordering.
Equivalents, at a glance
Quality & inspection
What’s checked and documented on every coil
01
Mill test certificate
Grade, coil number, thickness, coating and measured core loss P1.5/50 and induction B50 for each coil.
02
Dimensions
Thickness, width and camber checked against your order before packing.
03
Surface & edge
Surface, coating condition and slit-edge burr inspected on slit coils.
04
Coil label
Every coil labelled with grade, size, net weight and coil number, traceable to its certificate.
Need third-party inspection or a specific document format? State it in your inquiry →
By application
Where CRNGO coil is used
Industrial motors
Stator and rotor laminations for induction and synchronous motors.
Explore →Generators & alternators
Isotropic material for consistent output across rotor angle.
Enquire →Compressors & appliances
35W300–50W800 coil for compressor, pump, fan and washing-machine motors.
Enquire →EV traction motors
Thin-gauge coil for selected traction designs; high-speed rotors may need high-strength grades.
Explore →Product overview
What is CRNGO steel coil?
CRNGO steel coil is cold-rolled non-oriented silicon steel whose magnetic properties are nearly uniform in every direction of the sheet plane — the standard core material for rotating machines, where flux direction changes continuously as the rotor turns. For transformer cores, where flux follows one direction, see our CRGO steel coil instead.
Coil is the starting form for lamination production: it is slit to strip width, then blanked or progressively stamped into stator and rotor laminations.
How we work
From enquiry to your dock
Send your spec
Grade, thickness, strip width, coil weight, ID and quantity.
Quote in 24h
Grade match, pricing and availability within one business day.
Free samples
Test core loss and stampability, usually within a week.
Production & QC
Slit and inspected to order, with a mill test certificate per coil.
Export delivery
Seaworthy packing, FOB / CFR / CIF to your port.
Packaging & export
Seaworthy coil packing to any port

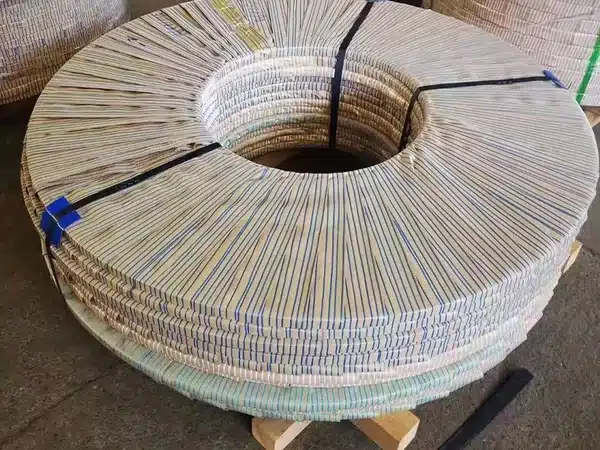

Anti-rust paper

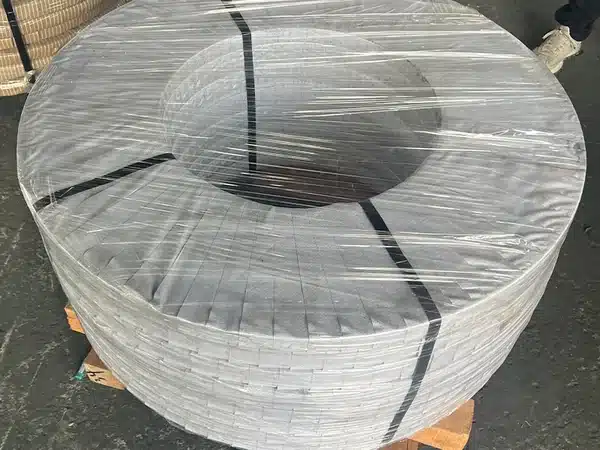

Film wrap

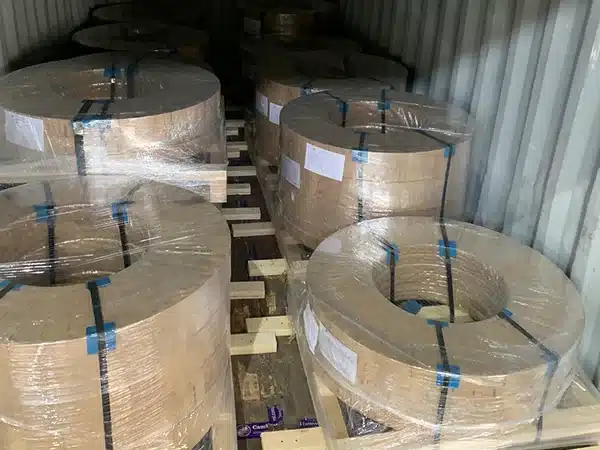

Container loading
01
Packaging
Anti-rust paper and stretch film, steel edge protectors and coil-eye protection, steel-strapped to a wooden pallet — eye-to-sky or eye-to-wall to suit your unloading.
02
Documentation
Mill test certificate, packing list, commercial invoice and certificate of origin; others on request.
03
Payment terms
T/T with 30% deposit and balance before shipment, or irrevocable L/C at sight.
04
Shipping & lead time
FOB Shanghai or Ningbo; CFR and CIF on request. 2–4 weeks production plus 25–45 days ocean freight.
Have a packing or labelling requirement? Include it in your inquiry →
FAQ
Sourcing CRNGO coil from us
What is CRNGO steel coil used for?
It is used to make stator and rotor laminations for electric motors, generators, compressors and appliance drives — machines where flux direction rotates. Grade and thickness are chosen by efficiency target, operating frequency and stamping process. For transformer cores, grain-oriented CRGO coil is normally used instead.
What’s the difference between master, mill-edge and slit coil?
Master coil is the full-width coil as rolled. Mill-edge coil keeps that as-rolled width and natural edge with no slitting. Slit coil is cut to your strip width, ready to feed a press. Choose based on whether you slit in-house.
Which thickness should I choose — 0.35, 0.50 or 0.65mm?
0.35 mm for lower loss and higher-frequency motors; 0.50 mm for most industrial motors; 0.65 mm for large, low-speed, cost-driven designs. Share your motor size, speed and frequency and we’ll recommend one.
What do 50W470, 50W600 and 50W800 mean?
“50” is the thickness (0.50 mm); the number after “W” is the maximum core loss ×100 at 1.5 T / 50 Hz — so 50W470 is ≤ 4.70 W/kg. The same logic applies to 35W300 and 65W800.
Can you match an EN, JIS or ASTM grade?
EN and JIS grades map directly by thickness and loss class — for example M470-50A ≈ 50W470 ≈ 50A470. AISI / ASTM grades need a data check. Send your spec and we’ll confirm the closest match. See the grade equivalents chart.
What coil weight and inner diameter do you supply?
Inner diameter is 508 mm standard, 610 mm on request. Master coils run approximately 3–8 t; slit coils are wound to your decoiler limit.
Which insulation coating should I specify?
It depends on how you build the core — welded, interlocked or bonded stacks — and whether laminations are stress-relief annealed after stamping. Tell us your core-building process and we’ll recommend a coating.
What’s the MOQ and lead time?
MOQ depends on grade, thickness and width — a full master coil typically runs 3–8 t. Quotes come within 24 hours. 50W470, 50W600 and 50W800 in common widths often ship from stock in days; custom-slit widths and 65W800 typically take a few weeks.
Do you provide free samples and a mill test certificate?
Yes — free samples are usually ready within about a week, so you can test core loss and stampability before committing to a full coil. Every coil ships with a mill test certificate showing measured core loss and induction.
Why buyers choose Zhongxin
Mill-grade CRNGO coil, export-ready service
Wuxi Zhongxin Special Steel Co., Ltd. is a Chinese manufacturer and exporter of non-oriented electrical steel, serving motor and generator makers across Europe, the Americas, Asia and beyond.
Request a CRNGO steel coil quote
For an accurate quote in 24 hours, include: grade, thickness, strip width, coil weight & ID, quantity, application, required standard and destination port. Free samples available.
