Same week, two quotes, same nominal CRNGO grade. One buyer was building washing machine motors. The other was sourcing core material for a wind turbine generator. Same grade family. Same rough thickness range. The conversations couldn’t have been more different. The appliance buyer wanted the lowest cost per ton that still cleared a minimum efficiency bar — full stop. The wind buyer wanted to know, in detail, how a fractional core-loss improvement would compound over a 20-year service life. Both were technically buying “steel for a rotating motor.” Almost nothing else about the decision matched.
Here’s both ends of that spectrum: where appliance motors and wind generators land in the same CRNGO family, and why the economics pull in opposite directions once you look past the grade name. This is one slice of a bigger picture — see our electrical steel applications guide for how grade selection changes across transformers, motors, EV drives, and renewable energy overall.
Core Key Points
- Both household appliance motors and wind turbine generators use CRNGO (non-oriented electrical steel), because both have rotating magnetic fields — the grade family logic is identical to any other motor or generator application.
- Wind power consumed over 400,000 metric tons of non-grain-oriented electrical steel globally in 2024 alone. A single standard-sized wind turbine generator uses 20-50 tons of electrical steel strip — tons, not kilograms.
- Appliance motor cores run grams to a few kilograms, produced in the millions per year. Cost efficiency wins almost every time; a fractional core-loss improvement rarely earns back its premium.
- Wind generator cores can weigh tons per unit, and a turbine often runs 20+ years. Small core-loss gains compound over that horizon into real, absolute energy savings — which is exactly why premium CRNGO shows up here and rarely in appliance motors.
- Neither application needs ultra-thin silicon steel. That’s specifically an EV traction motor requirement, driven by much higher operating frequencies. Both appliances and wind generators typically run standard 0.35-0.50mm CRNGO.
Household Appliance Motors: Cost Efficiency at Volume
Washing machine motors, refrigerator compressor motors, small fan motors — they share a few things that shape grade selection. Standard grid frequency. Millions of units a year. Brutal per-unit cost sensitivity, because appliance manufacturers compete on retail margins that leave almost no room for material cost creep.
Standard CRNGO at 0.35-0.50mm is close to the default here. Honestly, there’s not much of a case against it. Paying for a thinner gauge or a premium low-loss grade in a motor that runs a few hours a day at home rarely pencils out — the energy savings wouldn’t come close to covering the material premium over the appliance’s service life.

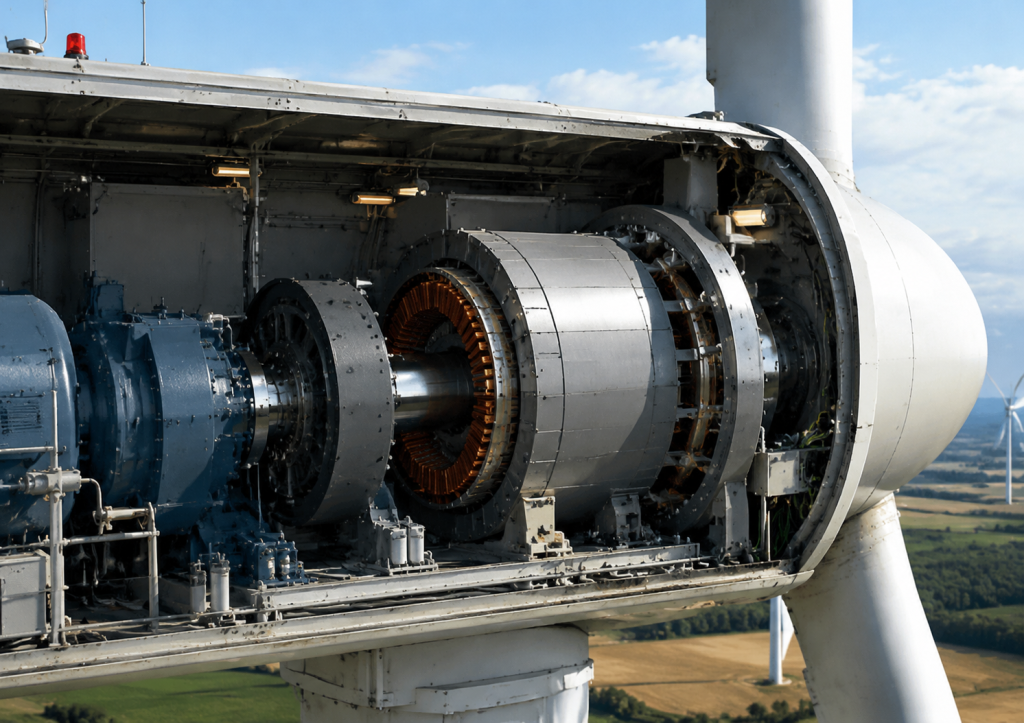

Wind Turbine Generators: Small Gains, Compounded Over Decades
Wind flips this completely, even inside the same CRNGO category. A generator core in a standard utility-scale turbine can use 20-50 tons of electrical steel strip. The turbine is expected to run for two decades or more, often somewhere remote where a maintenance visit isn’t cheap.
At that scale, over that time horizon, a core-loss improvement of even a few percentage points turns into a real, compounding energy yield gain across the turbine’s life. That’s the whole reason the wind sector, unlike appliance manufacturing, more often justifies premium CRNGO with a lower core loss ceiling — even at a real cost premium upfront.
Offshore wind pushes this further. Metal requirements for offshore wind grid infrastructure run measurably higher than onshore wind or solar PV, per materials research published in Environmental Science & Technology. Bigger steel commitment, bigger payoff from getting the grade right.
Why the Same Grade Family Splits Into Different Economics
The physics is identical — rotating field, isotropic performance needed, CRNGO is the right family — for a washing machine motor and a wind generator. What splits is the economics of trading material cost against lifetime energy savings:
- Volume vs. scale. Appliance motors are small and made by the million. Wind generators are large and made in comparatively small numbers. The cost-per-efficiency-gain math comes out nothing alike.
- Operating life. A washing machine motor might see 10-15 years at a few hours a day. A wind turbine runs continuously for 20+ years. The compounding window isn’t even close to the same.
- Access for maintenance. Appliance motors get serviced or swapped easily. Wind generators, offshore especially, are expensive to reach — so durability and lifetime performance carry more weight at the spec stage, before anything’s installed.
Quick Comparison
| Factor | Appliance Motors | Wind Turbine Generators |
|---|---|---|
| Grade family | CRNGO | CRNGO (often premium grade) |
| Typical thickness | 0.35-0.50mm | 0.35-0.50mm |
| Core size | Grams to a few kg | Tons per unit |
| Production volume | Millions of units/year | Low volume, high value per unit |
| Cost sensitivity | Very high per unit | Lower relative to lifetime energy value |
| Operating life | ~10-15 years | 20+ years |
| Grade justification | Lowest cost meeting minimum efficiency | Premium grade justified by compounding energy savings |
FAQ
Do wind turbines and appliance motors use the same type of electrical steel?
Both use CRNGO, because both have rotating magnetic fields. But wind generators more often justify premium, lower-core-loss grades, thanks to their scale and 20+ year operating life. Appliance motors typically stick with standard-grade CRNGO to keep per-unit cost down.
Why don’t appliance manufacturers just use premium electrical steel for better efficiency?
The economics don’t hold up at that scale. A premium grade’s higher cost, multiplied across millions of small motor cores, almost never gets recovered by the marginal energy savings over a typical appliance’s service life.
How much electrical steel does a single wind turbine generator use?
Around 20-50 tons of electrical steel strip for the core of a standard utility-scale wind turbine generator, based on industry sourcing data.
Does offshore wind require different electrical steel than onshore wind?
The grade logic stays the same — CRNGO, often premium grade — but offshore installations need more total steel for the associated grid infrastructure. It raises the volume and the stakes of the decision, not the grade family itself.
Small-volume premium generator cores and high-volume cost-sensitive appliance motors need two completely different conversations, even when the grade name on paper looks the same. Tell us your production volume and expected service life, and we’ll tell you honestly whether a premium grade actually pays for itself in your case — not just quote whichever one’s easier to sell.
